D single-suction multi-stage sectional-type centrifugal pump 1

D single-suction multi-stage sectional-type centrifugal pump 2

D single-suction multi-stage sectional-type centrifugal pump

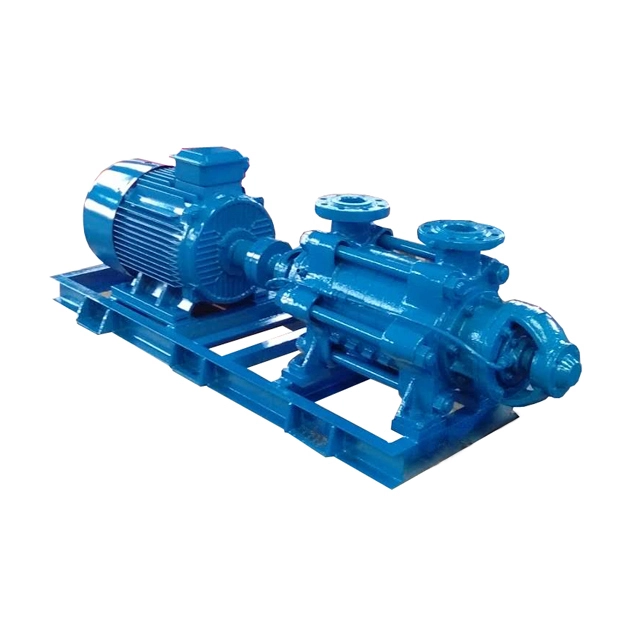

D single-suction multi-stage sectional-type centrifugal pump is used to transport the pure watercontaining no solid grains and the liquid with both physical and chemical natures similar to those ofpure water,the temperature of the liquid is not over 80℃,suitable for water supply and drainage in mines, factories and cities.

Note: Use an explosion-proof motor when used in aoal well.

This series pump comply with the standards of GB/T3216 and GB/T5657.

Head:

81~1812m

Capacity:

6.3~500m³/h

Medium temperature:

-20℃~80℃

Maximum pressure:

＜200bar

Inquiry

Write a Review

Product Information

Model D pump consists of four parts, stator, rotor, bearing and shaft seal:

1.Stator consists of inlet, middle and outlet sections and the guide vane etc., with the take-up bolt tightly clamping all sections to form a working room. The inlet of it stands horizontally while the outlet vertically upward.

2.Rotor consists of the shaft, impeller, balancing disk and muff etc., the shaft passes the power to the impeller to have it work; the balancing disk balances the axial force; and replaceable muff is mounted on both sides of the shaft to protect it.

3.There are rolling and sliding bearings:

The rolling bearing consists of bearing seat, bearing and bearing gland and uses grease for lubrication. The sliding bearing consists of bearing body and cover, liner, dust-proof disk, oil leveller, oil throwing ring etc., and uses thinned oil for lubrication.

4. The shaft is sealed with stuffing and the shaft seal consists of the sealing contents, stuffing, baffle. The liquid in the sealing work-room functions water-sealing, water cooling and water lubricating and the water for water sealing comes from the pressure water inside of the pump.

A mechanical seal can also be used upon the requirement from users.

In addition, the pump is directly actuated by the prime mover through the elastic clutch and, viewing from the prime mover, moves CW.

advantage

Compact structure. These series pumps have an integrally Horizontal structure, beautiful appearance and small footprint.

Stable running, low noise, high concentricity of assembly. By the straight joint between the motor and the pump, the middle structure is made simplified, thus enhancing the running stability, making the impeller of a good balance of moving-resting, resulting in no vibration during running and improving the environment of use.

No leakage. A mechanical seal of antiseptic carbide alloy is used for the shaft sealing so as to get rid of the serious leakage of the fillings of centrifugal pumps and ensure the operating place clean and neat.

Convenient installation and maintenance. Service can be easily done without removing any pipeline because of the back-door structure.

Viewing from the inlet of the pump, the outlet of it can be mounted in one of the three ways, horizontally leftward, vertically upward and horizontally rightward.

Product Display

Model meaning

specifications

1	Clutch part	3	Bearing body	5	Inlet section	7	Middle-section	9	Guidevane	11	Water-sealing pipe part	13	Balancing sleeve	15	Stuffing content
2	Shaft	4	Stuffing gland	6	Seal-ring	8	Impeller	10	Guidevane sleeve	12	Outlet section	14	Balancingdisk	16	Bearing

1	Clutch part	3	Bearing part	5	Inlet section	7	Guide vane	9	Outlet section	11	Water-sealing pipe part	13	Seal-ring	15	Balancing disk
2	Shaft	4	Stuffing gland	6	Middle-section	8	Final-stage guide vane	10	Balancing ring	12	Stuffing content	14	Impeller	16	Bearing part

1	Clutch part	3	Bearing part	5	Inlet section	7	Guide vane	9	Outlet section	11	Water-sealing pipe part	13	Seal-ring	15	Balancing disk
2	Shaft	4	Stuffing gland part	6	Middle-section	8	Final-stage guide vane	10	Balancing ring	12	Stuffing content	14	Impeller	16	Bearing part

size
