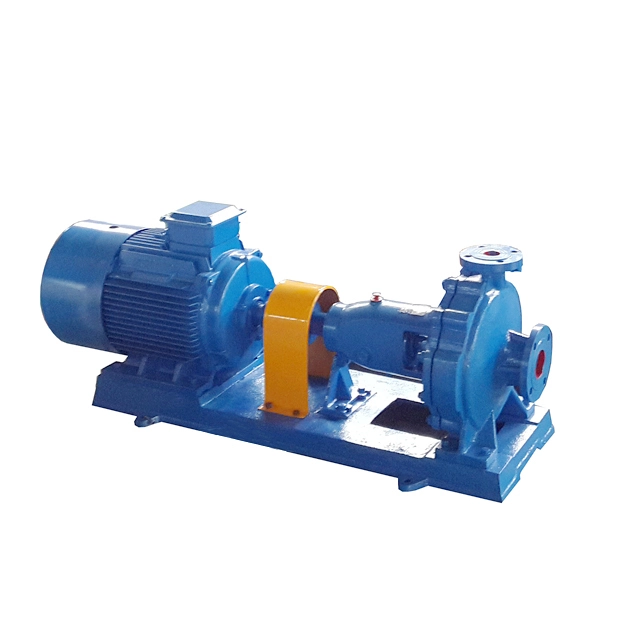

IS series single-stage end-suction centrifugal pump

IS series single-stageend-suction (axial intake) centrifugal pump is an energy-saving pump designed by teamwork in the whole nation, it is improved on a basis on model BA, B and other single-stage water centrifugal pump. The advantages: its hydraulic capability is distributed reasonably, wide option for user, conveniently check and repair, the efficiency and throw is up to advanced international level. This pump is suitable for industrial and city water supply, water drainage, and widely 80 used for agricultural irrigation, transportation pure water or other liquids whihc physical and chemical nature is similar to pure water, and the temperature should not be higher than 80℃.

Head:

5~125m

Capacity:

6.3~400m³/h

Medium temperature:

≤80℃

Inquiry

Write a Review

Product Information

IS series single-stage end-suction centrifugal pump is designed according to the capability and size stipulated in the international Standard ISO2858, it is composed of pump body, pump cover, impeller, shaft, ring seal, sleeve and suspended bearing units.

The pump body and pump cover in IS series are separated from the back of impeller, that is to say in general, back open structure,whose advantages:

convenient overhaul, when checking and repairing, the pump body intake pimp, discharge pipe and motor need not to move, just disassembly the middle connector of extended coupling to quit the rotor units for overhaul.

The axial sealing ring of the pump is composed of packing gland, packing rings and packing to avoid air admission or severe water leakage. For the impeller with balance hole, the empty chamber with soft packing is straight through with the impeller inlet. If the liquid in the impeller inlet is in vacuum state, the air will enter along the surface of muff easily. Therefore , the packing chamber is fitted with packing ring, which has the seal function when pressure water inside the chamber is led to it through a small hole in the pump cover. For the impeller without balance hole, the packing ring may be neglected in virtue of no existence of air leakage because the impeller back hydraulic pressure is larger than atmosphere one.

Detail description

The pump shell (that is pump body and pump cover) forms the workroom of pump. Impeller, shaft and rolling bearing are the rotors for the pump. Suspended bearing units support the rotors in the pump. The rolling bearing stands the radial load and axial force.

In order to balance the axial force of the pump, most of the pumps are designed with sealing rings at the front and back of impellers and a balance hole on the rear impeller cap plate. The reverse of impeller is not designed with sealing rings or balance holes if pump axial force is not powerful.

To avoid abrasion of shaft, the part where the shaft runs through packing chamber is fitted with protective muff. O ring is fitted between muff and shaft to protect against air entering or water leaking along the matching surface.

The pump is connected to motor with extending flexible coupling. The pump turns clockwise when you look from the driving end.

Product Display

Model meaning

specifications

1	Pump casing
2	Pump cover
3	Impeller
4	Shaft
5	Sealing ring
6	Impeller nut
7	Lock washer
8	Muff
9	Packing gland
10	Packing ring
11	Packing
12	Pendant bearing assembly

size

Model	Seat No./power (kw)	Out-form and in stal l atio n dimensi on
Model	Seat No./power (kw)	L₁	L₂	L₃	T	a	f	L₅	B₁	B₂	B₃	h₁	h₂	H	H₁	H₂	n-d
IS50-32-125	80-4/0.55	820	150	540	285	80	885	850	150	360	320	112	25	187	327	277	4-φ 18.5
	80-2/1.1	820	150	540	285	80	885	850	150	360	320	112	25	187	327	277	4-φ 18.5
	90S-2/1.5	820	150	540	310	80	885	875	155	360	320	112	25	187	327	277	4-φ 18.5
	90L-2/2.2	920	170	600	335	80	885	900	155	390	350	112	25	187	327	287	4-φ 18.5
IS50-32-160	80-4/0.55	820	150	540	285	80	385	850	150	360	320	132	25	207	367	297	4-φ 18.5
	90S-2/1.5	820	150	540	310	80	385	875	155	360	320	132	25	207	367	307	4-φ 18.5
	90L-2/2.2	920	170	600	335	80	385	900	155	360	320	132	25	207	367	307	4-φ 18.5
	100L-2/3.2	920	170	600	380	80	385	945	180	390	350	132	25	207	367	352	4-φ 18.5
IS50-32-200	80-4/0.75	820	150	540	285	80	385	850	150	360	320	160	25	235	415	325	4-φ 18.5
	100L-2/3	920	170	600	380	80	385	945	180	390	350	160	25	235	415	380	4-φ 18.5
	112M2/4	920	170	600	400	80	385	965	190	390	350	160	25	235	415	388	4-φ 18.5
	132S-2/5.5	1020	190	660	475	80	385	1040	210	450	400	160	30	235	415	418	4-φ 24
IS50-32-250	90S-4/1.1	1020	190	660	310	100	500	1010	155	450	400	180	30	255	480	355	4-φ 24
	90L-4/1.5	1020	190	660	335	100	500	1035	155	450	400	180	30	255	480	355	4-φ24
	132S-2/7.5	1160	210	740	475	100	500	1175	210	490	440	180	30	270	495	453	4-φ 24
	160M2/11	1290	225	840	600	100	500	1300	255	540	490	180	30	290	515	515	4-φ 24
IS65-50-125	88-4/0.55	820	150	510	285	80	385	850	150	360	320	112	25	187	327	277	4-φ 18.5
	90S-2/1.5	820	150	540	310	80	385	875	155	360	320	112	25	187	327	287	4-φ 18.5
	90L-2/2.2	920	170	600	335	80	385	900	155	390	350	112	25	187	327	287	4-φ 18.5
	100L-2/3	920	170	600	380	80	385	945	180	390	350	112	25	187	327	332	4-φ 18.5
