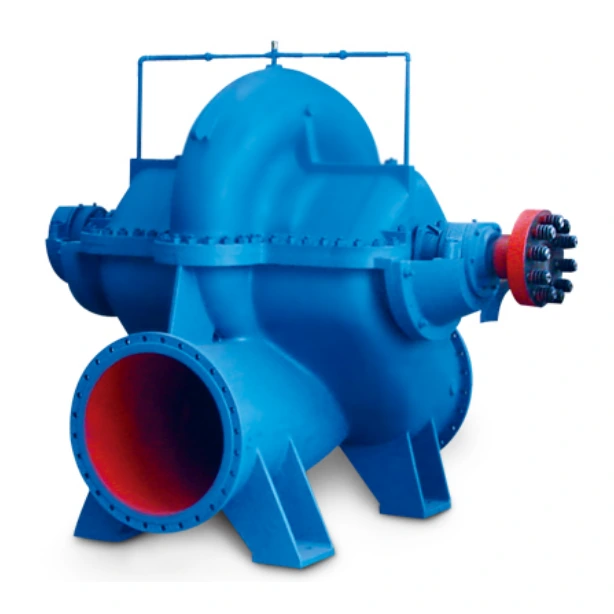

S series single-stage double-suction horizontal split centrifugal pump

Both inlet and outlet of this pump are placed under the axial line, horizontally and vertical to the axial line, the pump casing is opened in the middle so it is unnecessary to remove the water inlet and outlet pipelines and motor(or other prime movers). The pump moves CW viewing from the clutch to it. The pump moving CCW can also be made, but it should be specially noted at order.

The main parts of the pump are:pump casing(1), pump cover (2), impeller(3), shaft(4), dual-suction seal ring(5),muff(6), bearing(15) etc.and all of them, except the axle which is made of quality carbon steel,are made of cast iron. The material may be replaced with others upon different media.

Both pump casing and cover form the working chamber of the impeller and there are threaded holes for mounting vacuum and pressure meters on the flanges at both inlet and outlet and for water draining on the lower side of them.

The impeller is static-balance calibrated,fixed with the muff and the muff nuts in both sides and its axial position can be adjusted via the nuts and axial force gets balanced by means of the symmetrical arrangement of its blades, there may be residual axial force which is borne by the bearing at the axle end.

The pump shaft is supported by two single-column centripetal ball bearings, which are mounted inside of the bearing body on both ends of the pump and lubricated with grease. The dual suction seal ring is used to reduce the leak at the impeller.
