Water Pump Cost 3.75~240m³/h -8.5~200℃supplier

Product details of the water pump cost

Product Overview

The design concept of Bangpu water pump cost is based on modern green style. The product is tested by our quality experts in strict accordance with a range of parameters to ensure its quality and performance. The water pump cost produced by Bangpu is widely used. Excellent characteristics make the product have greater market potential.

Product Description

We pursue perfection in every detail of the water pump cost we produce. And our products represent the excellent quality.

Product Information

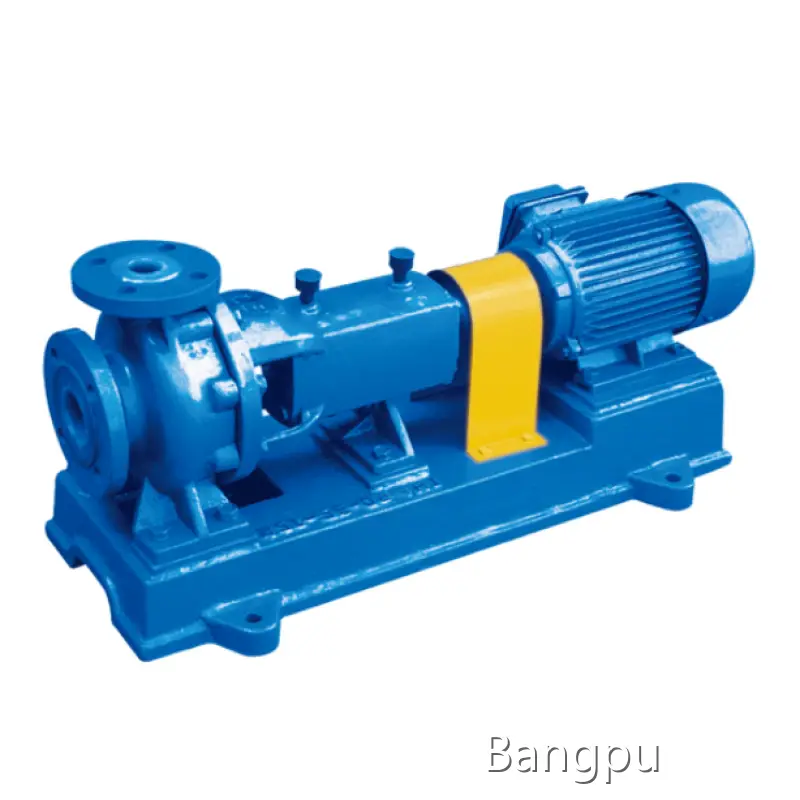

Model IHF centrifugal pump is applicable for chemical industry, pharmacy, petroleum, metallurgy, smelting, electric power, dyeing, agrochemical, paper making,food etc.trades,such as the acid wash,painting technologies in the automobile manufacture;the electrolyte transportation in the non-ferrous metals melting;the chlorine water,waste water treatment and acid addition technological flow etc.in the ionic membrane sodium hydroxide project,and able to transport sulphuric acid,acetic acid,hydrochloric acid,hydrocyanic acid,nitric acid,aquregia,alkali,strong oxidant,organic solvent,reducing reagent etc.strong corrosive media.

advantage

01

Compact structure. These series pumps have an integrally Horizontal structure, beautiful appearance and small footprint.

02

Stable running, low noise, high concentricity of assembly. By the straight joint between the motor and the pump, the middle structure is made simplified, thus enhancing the running stability, making the impeller of a good balance of moving-resting, resulting in no vibration during running and improving the environment of use.

03

No leakage. A mechanical seal of antiseptic carbide alloy is used for the shaft sealing so as to get rid of the serious leakage of the fillings of centrifugal pumps and ensure the operating place clean and neat.

04

Convenient installation and maintenance. Service can be easily done without removing any pipeline because of the back-door structure.

05

Viewing from the inlet of the pump, the outlet of it can be mounted in one of the three ways, horizontally leftward, vertically upward and horizontally rightward.

Product Display

Model meaning

specifications

No	Name	Material	No	Name	Material	No	Name	Material
1	Pump casing	HT200	5	Pump cover interlining	F46	9	Dynamic ring	Silicon nitride
2	Impeller frame	45# Steel	6	Pump cover	HT200	10	Pump shaft	3Cr13
3	Impeller	F46	7	Gland of mechanical seal	1Cr18Ni9Ti	11	Bearing body	HT200
4	Pump casing interlining	F46	8	Static ring	99.9 %Aluminum oxide ceramic	12	Clutch	HT200

install
