XBD-BPO(L) series double-suction fire-fighting pump 1

XBD-BPO(L) series double-suction fire-fighting pump 2

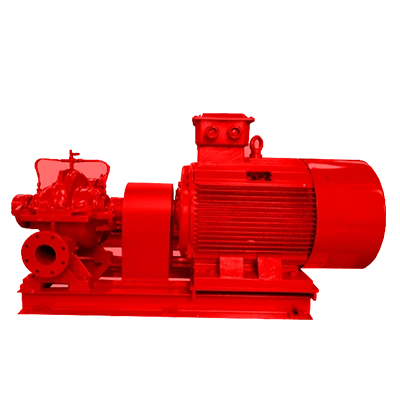

XBD-BPO(L) series double-suction fire-fighting pump

XBD-BPO series fire fighting pump group is double suction split spiral casing centrifugal pump. This series product is made by means of a good modern hydraulic model, via the computerized optimized design and strictly following the national standard: GB6245《Fire Fighting Pumps》, features a compact and reasonable structure, a nice outlook design, greatly enhanced indexes of reliability and efficiency and is applicable for transporting the liquid below 104℃, without containing solid grains or with the physical nature similar to that of pure water, mainly for the water supply for the fire fighting system in industrial and civil buildings.

Capacity:

18~1152m³/h

Pressure:

0.3~2MPa

Medium temperature:

0℃~80℃

Maximum pressure:

＜25bar

Inquiry

Write a Review

Product Information

XBD-BPO series fire fighting pump group is double suction split spiral casing centrifugal pump.

This series product is made by means of a good modern hydraulic model, via the computerized optimized design and strictly following the national standard: GB6245《Fire Fighting Pumps》, features a compact and reasonable structure, a nice outlook design, greatly enhanced indexes of reliability and efficiency.

Transporting the liquid below 104℃, without containing solid grains or with the physical nature similar to that of pure water. Mainly for the water supply for the fire fighting system in industrial and civil buildings.

advantage

This series pump is of an horizontal and split type, with both pump casing and cover split at the central line of the shaft, both water inlet and outlet and the pump casing cast integrally.

Wearable ring set in between the handwheel and the pump casing, the impeller axially fixed upon an elastic baffle ring and the mechanical seal directly mounted on the shaft, without a muff, greatly lowering the work of repair.

The shaft is made of stainless steel or the 40Cr-plated, the packing sealing structure is set with a muff to prevent the shaft from worn-out.

the bearings are an opened-ball bearing and a round-post roller bearing and axially fixed upon a baffle ring

There is no thread and nut on the shaft of single-stage double-suction pump so the moving direction of the pump can be changed at will without need to replace it and the impeller is made of copper.

Model meaning

specifications

No.	Name	No.	Name
1	Pump cover	11	Bearing
2	Impeller	12	Pump casing
3	Water sealed pipe part	13	Packing gland
4	Seal ring	14	Muff
5	Mechanical seal	15	Packing ring
6	Mechanical seal gland	16	Packing
7	Oil seal of frame	17	Shaft
8	Bearing	18	Sealing body
9	Elastic baffle ring of shaft	19	Bearing gland
10	Clutch	20	Bearing body

Installation Dimension
