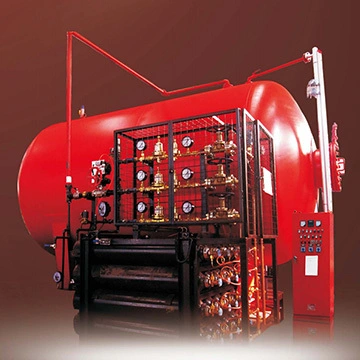

DBP gas top pressing air pressure water supply equipment

DBP series fire pressure top pressure water supply equipment produced by our company is suitable for high-rise building fire water supply, in line with a number of fire codes, is a more space-saving new fixed fire extinguishing device. The device is composed of an air pressure tank, a water pump unit, a gas top pressure device, an electronic control instrument system, etc. The tank size is one-third to one-fifth of the ordinary air pressure tank.

Voltage:

380V(+5%、-10%）

Relative humidity:

≤85%(20±5℃)

Liquid temperature:

4~70℃

Environment temperature:

5~40℃

Inquiry

Write a Review

Product Information

advantage

The DBP product is meticulously designed by our professional team, integrating the control cabinet, water pump, air compressor for pressure compensation, etc. into one unit. It is combined with water storage tanks, containerized devices, etc. to form a complete set of products. After on-site installation, it can be put into use by connecting the incoming power supply, water inlet and outlet pipes, and simple instrument wiring.

The air pressure tank and gas pressure boosting device configured in the DBP product comply with the provisions of GB150-1998 "Steel Pressure Vessels" and GB5099-1994 "Steel Seamless Gas Cylinders" in terms of design, manufacture, pressure testing, inspection and acceptance.

The water pump configured in the DBP product has passed the type inspection of the National Fire Equipment Quality Supervision and Inspection Center, and its quality meets the requirements of GB6245-1998 "Performance Requirements and Test Methods for Fire Pumps".

The DBP product features advanced multi-functional programming control, capable of receiving various fire signals and being networked with the fire control center.

The DBP product is equipped with two power supply interfaces and has an automatic dual power supply switching function.

The gas pressure boosting device of the DBP product is equipped with a dry battery backup power supply, ensuring safe and reliable fire extinguishing performance.

The components used in the DBP product have been carefully selected from numerous manufacturers, providing reliable product quality assurance. Key components in standard products, such as motors, water pump bearings, programmable controllers, circuit breakers, contactors, and relays, adopt internationally and domestically renowned brands.

The DBP product can store 10 minutes of fire-fighting water volume and can replace indoor fire water tanks. It has the advantages of low investment, short construction period, simple installation, and easy realization of automatic control. It is particularly suitab

schematic Diagram

Installation Dimensions
