Water supply and drainage equipment research and development, production and sales

XBC series diesel engine fire-fighting/emergency pump group 1

XBC series diesel engine fire-fighting/emergency pump group 2

XBC series diesel engine fire-fighting/emergency pump group 3

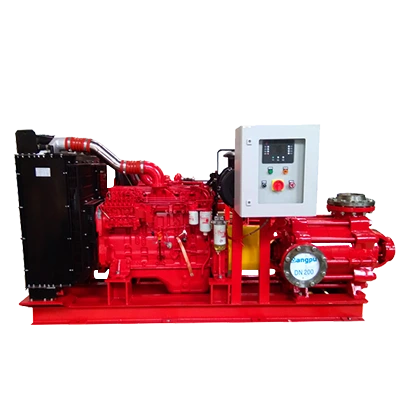

XBC series diesel engine fire-fighting/emergency pump group

XBC series diesel engine fire-fighting pump group is a new-style fire-fighting equipment ("equipment" there after) developed by this company. in accordance with GB6245-98 Fire -fighting pumps and NEPA20 Installation of centrifugal fire-fighting pumps etc.standards and, upon the fitted fire-fighting pumps (single-stage single-suction type, single-stage dual-suction type and sectional multistage type), can be divided into SBC-is, XBC-SLOW and XBC-D three sub-series. The equipment has a wide range of pressure and temperature and can be used for almost every occasion necessary for fire-fighting.

The diesel engine fitted with the equipment is an excellent product domestic or imported, features good starting performance, strong overload capacity, compact structure, easy maintenance and use and high degree of automation. The equipment is really a fire-fighting one advanced and reliable in performance.

Relative humidity:

≤90%

Environment temperature:

5℃~40℃

Elevation:

≤1000m

Inquiry

Write a Review

Product Information

XBC series diesel engine fire-fighting pump group is a new-style fire-fighting equipment ("equipment" there after) developed by this company.

In accordance with GB6245-98 Fire -fighting pumps and NEPA20 Installation of centrifugal fire-fighting pumps etc. standards and, upon the fitted fire-fighting pumps (single-stage single-suction type, single-stage dual-suction type and sectional multistage type), can be divided into SBC-is, XBC-SLOW and XBC-D three sub-series.

The equipment has a wide range of pressure and temperature and can be used for almost every occasion necessary for fire-fighting.

advantage

The equipment takes X6135, 12V135, 4102, 4105, 6102 etc.series diesel engines as the power and these diesel engines (can be fitted with clutches) are combined with fire-fighting pumps through high elastic clutches to form the fire-fighting pump group , including diesel tank, radiation water tank, blower, control screen (for the auto group) etc.parts.

As the auto-control group, a separate diesel engine auto control cabinet (programmable) carries out the system's automatic starting, putting into use, auto-switching ( the motor pump group is switched to the diesel engine pump one or the diesel engine pump group to another group), auto-protection (warning and stopping protection for the diesel engine's overspeed, lower oil pressure, high water temperature, three times failures of starting, low voltage of accumulator etc.) etc. functions and also can be connected to fire-fighting centers of users or the automatic alarm device of fire to get a remote monitoring.
